What this can include
- Turned parts
- Milled parts
- Ground components
- Large or heavy machined parts
- Components requiring multiple machining operations
MANUFACTURING SERVICE
CNC & Precision Machining
Machined parts are evaluated by material, geometry, tolerance, quantity, process route, measurement capability and downstream operations.
QUALIFICATION BASIS

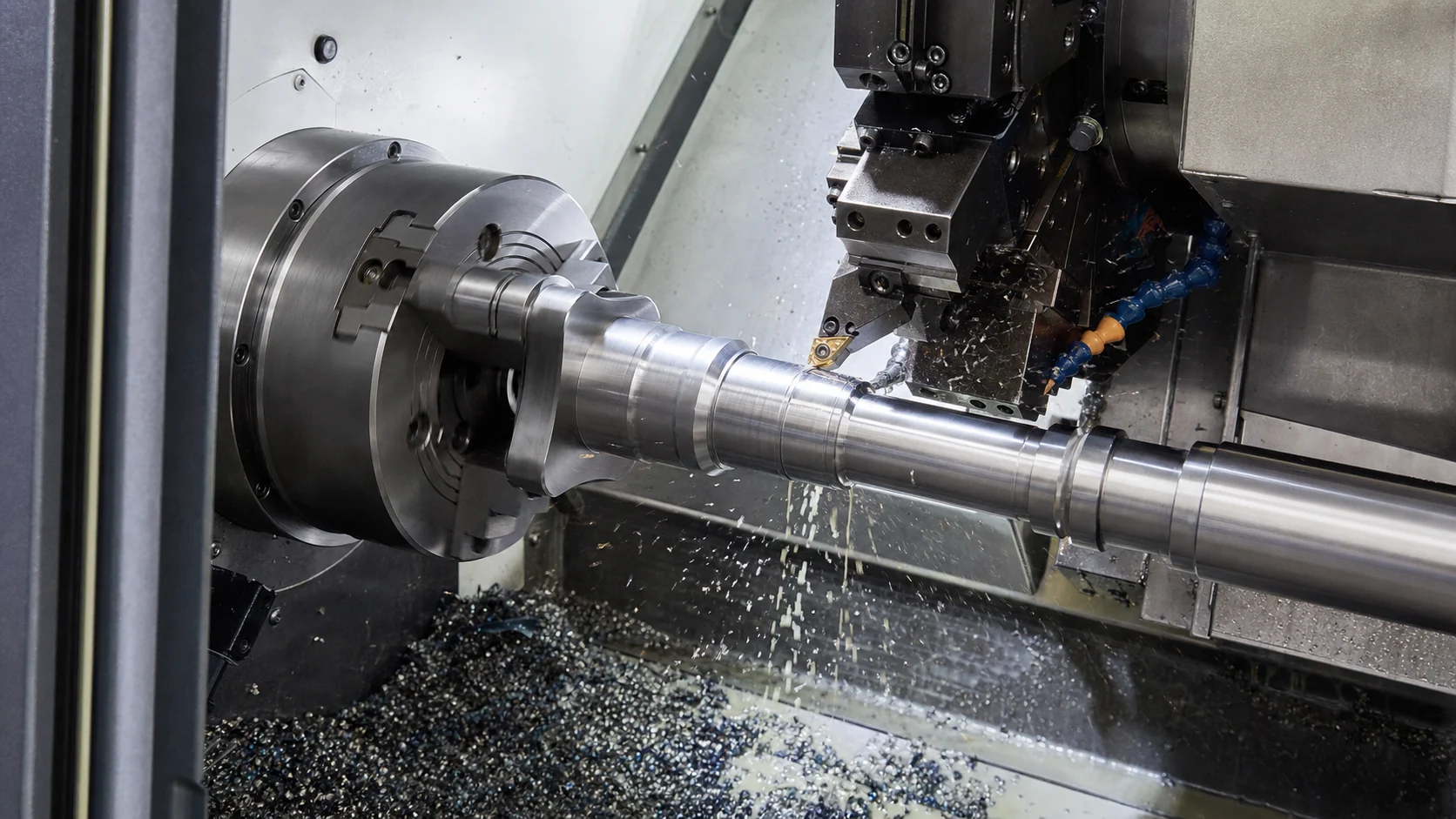

Machine capability, fixture strategy, datum control and measurement methods are reviewed against the drawing.
The exact control plan is agreed after the technical and commercial scope is understood.
Materials covered
- Carbon and alloy steel
- Stainless steel
- Aluminium
- Copper alloys
- Other confirmed machinable materials
Processes covered by this service
- Turning
- Milling
- Grinding
- Drilling, boring and tapping
- Deburring and cleaning
Inspection and records
- Drawing review
- First-article inspection
- Critical-dimension measurement
- Surface roughness where specified
- Batch review
Risks to clarify
- Wrong revision
- Tolerance drift
- Fixture or datum error
- Burrs and handling damage
- Sample-to-batch variation
Information to start
- 2D drawing and 3D model
- Material
- Critical characteristics
- Batch and annual quantity
- Required inspection evidence
-
01
Drawing and input review
Confirm the 2D drawing or 3D model, material, tolerances, critical features, finish, quantity and required inspection evidence.
-
02
Supplier-process fit
Assess the supplier against the part geometry, material, machining route, required equipment type, secondary operations and inspection needs.
-
03
Quotation and process basis
Keep the material, setup, tooling, machining, secondary-process and agreed inspection basis visible where they affect supplier comparison.
-
04
First-article through final release
Review agreed first-article, in-process and final inspection evidence, together with traceability, nonconformity status and factory-release records.
